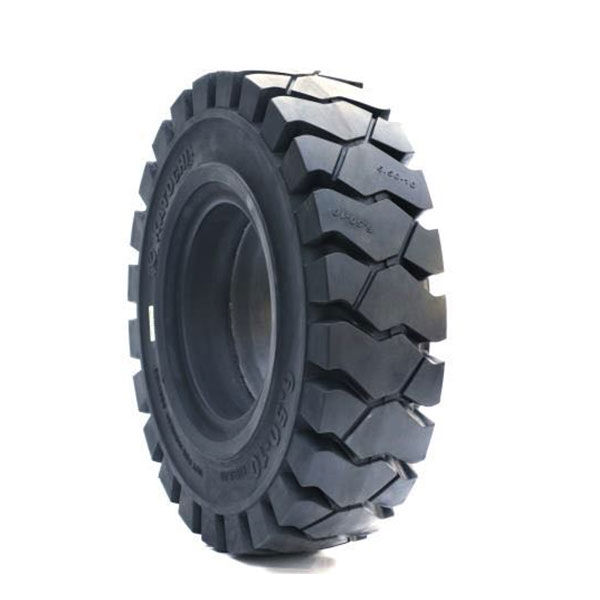

Pneumatic shaped solid tyre

Description

Specifications：

higher loading
Deeper Tread
Longer Life
low energy consumption
Air-Cushioned Ride
Special Sidewall Design
Heavy Duty Rubber Compounds

ADVANTAGE:

1, All our solid tires are in line with GB/T10824-2008

2, If needed, we can supply the correct rims and press the rims into the tires

3, We will advise the speed limit and load capacity after sales

4, If any problem, please contact with us, we will reply in short time.

5, If quality problem, please take photos, we will be responsible for this.

6, For the need of developing new product, please offer us detailed technical requirement or mould drawing.

PNEUMATIC SHAPED SOLID TIRE
Size	Pattern	Rim	Overall Diameter	Section Width	Load capacity(kg)						Other forklift
					Balance forklift						Other forklift
					10km/h		16km/h		25km/h		16km/h
			mm	mm	Dirve	Steer	Drive	Steer	Drive	Steer	16km/h
4.00-8	G-101	3	423	115	1055	845	1020	765	950	715	730
4.00-8	G-101	3.75	423	115	1050	845	1020	765	950	715	730
15×41/2-8	G-101	3.25	380	106	905	725	675	655	805	605	625
15×41/2-8	G-101	3	380	106	905	725	675	655	805	605	625
5.00-8	G-101	3	469	126	1210	970	1175	880	1095	820	840
5.00-8	G-102	3	469	126	1210	970	1175	880	1095	820	840
16×6-8	G-101	4.33	418	156	1500	1200	1445	1085	1345	1010	1035
18×7-8	G-101	4.33	457	154	2350	1880	2265	1700	2110	1585	1620
21×8-9	G-101	6	535	189	2810	2250	2715	2035	2530	1895	1940
23×9-10	G-101	6.5	597	230	4005	3205	3845	2885	3605	2705	2765
23×10-12	G-101	8.00	595	237	3980	3420	3820	3210	3586	3010	2980
27×10-12	G-101	8	683	235	4465	3570	4315	3235	4020	3015	3080
6.00-9	G-101	4	545	140	1920	1535	1855	1390	1730	1295	1325
6.00-9	G-102	4	545	140	1920	1535	1855	1390	1730	1295	1325
6.50-10	G-101	5	597	157	2840	2110	2545	1910	2370	1780	1820
6.50-10	G-102	5	597	157	2840	2110	2545	1910	2370	1780	1820
200/50-10	G-101	6.5	458	198	2370	1900	2290	1720	2135	1605	1630
7.00-9	G-101	5	578	170	2370	2015	2805	1925	2370	1750	1785
7.00-12	G-101	5	683	168	3015	2410	2910	2185	2710	2035	2075
7.00-12	G-102	5	683	168	3015	2410	2910	2185	2710	2035	2075
7.00-15	G-101	5.5	759	178	3590	2870	3465	2600	3225	2420	2475
7.00-15	G-101	6	759	178	3590	2870	3465	2600	3225	2420	2475
7.50-15	G-101	5.5	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-15	G-101	6	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-15	G-101	6.5	774	215	3690	2950	3425	2570	3190	2395	2450
7.50-16	G-101	5.5	819	181	3910	3130	3780	2835	3520	2640	2700
7.50-16	G-101	6	819	181	3910	3130	3780	2835	3520	2640	2700
8.25-15	G-101	6.5	847	205	4940	3950	4765	3575	4440	3330	3045
8.25-15	G-102	6.5	847	205	4940	3950	4765	3575	4440	3330	3045
8.25-12	G-101	6.5	735	206	3326	2660	3215	2410	2995	2245	2295
8.15-15	G-101	7	706	207	4090	3270	3945	2960	3675	2755	2820
8.15-15	G-102	7	706	207	4090	3270	3945	2960	3675	2755	2820
8.25-20	G-101	6.5	902	218	5425	4340	5420	3930	4880	3735	3475
7.50-20	G-101	6.5	935	218	5165	4130	4985	3740	4640	3480	3560
250-15	G-101	7	735	220	4366	3400	4220	3160	3930	2955	3010
250-15	G-102	7	735	220	4366	3400	4220	3160	3930	2955	3010
250-15	G-101	7.5	735	226	4366	3400	4220	3160	3930	2955	3010
250-15	G-102	7.5	735	226	4366	3400	4220	3160	3930	2955	3010
9.00-16	G-101	6.5	884	218	5135	4110	4965	3725	4625	3470	3550
300-15	G-101	8	838	258	5990	4700	5780	4335	5380	4037	4130
300-15	G-102	8	838	258	5990	4700	5780	4335	5380	4037	4130
28×12.5-15	G-101	9.75	706	300	5735	4590	5540	4165	5170	3890	3955
32×12.1-15	G-101	9.75	823	301	7120	6700	5860	6170	6410	4520	4910
9.00-20	G-101	6.5	1038	238	6450	5160	6235	4675	5805	4355	4450
9.00-20	G-101	7	1038	238	6450	5160	6235	4675	5805	4355	4450
10.00-20	G-101	7.5	1073	240	7240	5795	6995	5240	6610	4885	4995
10.00-20	G-101	8	1073	240	7240	5795	6995	5240	6610	4885	4995
11.00-20	G-101	8	1075	252	7560	6050	7300	5490	6810	5120	5210
12.00-20	G-101	8	1146	290	8800	7000	8500	6925	8000	6450	6595
12.00-20	G-101	8.5	1146	290	8800	7000	8500	6925	8000	6450	6595
